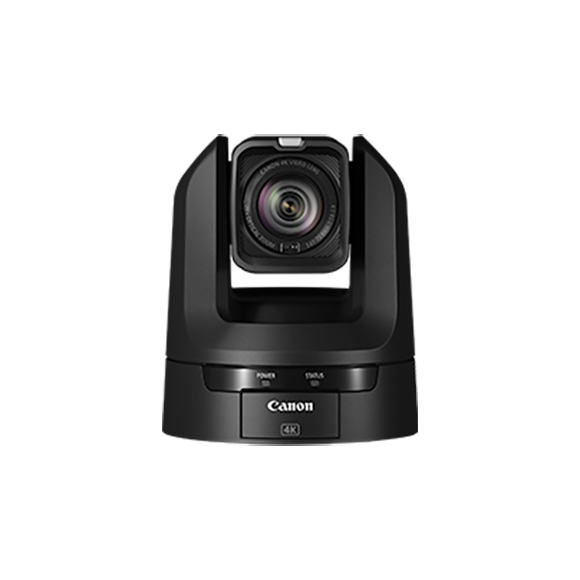

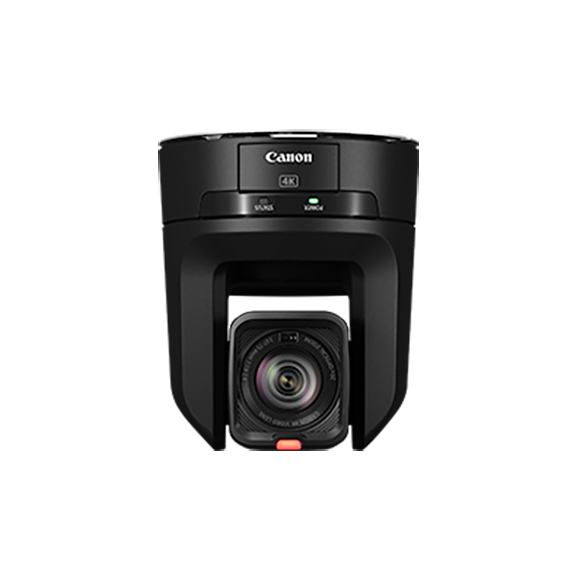

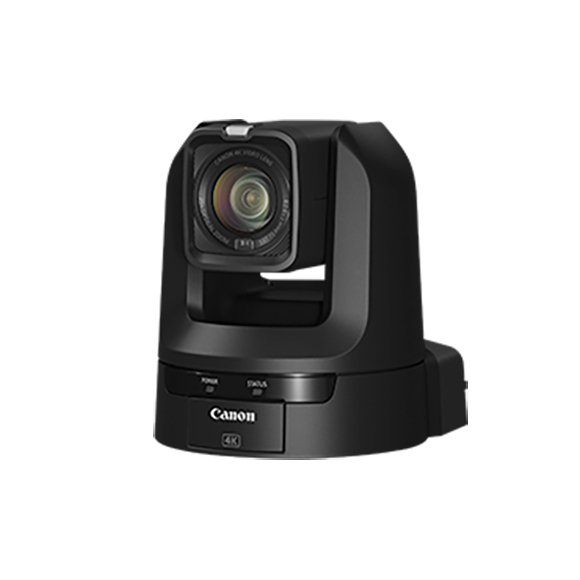

Canon CR-N300 PTZ 4K NDI IP Camera
$3,699.00
{"id":40552149221458,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Canon CR-N300 PTZ 4K NDI IP Camera","public_title":null,"options":["Default Title"],"price":369900,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}
$3,699.00

Canon CR-N300 PTZ 4K NDI IP Camera

Price
$3,699.00
{"id":40552149221458,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Canon CR-N300 PTZ 4K NDI IP Camera","public_title":null,"options":["Default Title"],"price":369900,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}

Complementary Products

Description

Canon’s CR-N300 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more. The CR-N300 PTZ produces incredible image quality with the combination of a 1/2.3” 4K CMOS sensor and DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N300. The CR-N300 camera supports Canon’s new XC Protocol as well as RTMP, NDI®|HX Live Video Production Protocol, Standard (VISCA) Protocol and more. The CR-N300 can be controlled remotely by IP, Serial, IR, USB or wirelessly via Wi-Fi.



CR-N300Download Specs

Camera

Colour



Satin black/Titanium white


Image Sensor



Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)



Lens



f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)



Zoom



Digital: 20x
Optical: 20x



Lens Configuration



12 elements in 10 groups (including 2 aspheric elements)


Minimum Focusing Distance



1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range


Angle of View



[4K UHD]
Horizontal: 65.6 (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)



Shutter Speed



1/6 – 1/2000 sec. (specific values depend on the frame frequency)


Iris



Manual/Automatic aperture


Gain



0.0 dB – 36 dB


White Balance



AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),
colour temperature setting (2,000 K – 15,000 K), Manual
*Colour temperatures are given for reference purposes only.



Focus



Focus mode: Manual, Continuous AF, Face AF, Tracking
AF type: Hybrid AF, Contrast AF



Gamma



Normal1 (Standard), Normal3 (BT.709)


Image Stabilizer



Optical-shift


Min. Subject Illumination



Approx. 1.5 lux (shutter speed 1/30 sec., frame frequency 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)


Pan and Tilt



Pan operation range: Horizontal ±170°
Pan operation speed: 0.2° – 300°/sec.
Tilt operation range: Vertical -30° – +100°
Tilt operation speed: 0.2° – 170°/sec.




Video Output Format

SDI



1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.



HDMI



3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.



IP



3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
*If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
*A frame rate that exceeds the frame frequency cannot be selected.
*JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720
When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps



USB



Motion JPEG:
1920 x 1080
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
1280 x 720
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
640 x 360
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps



Supported Video and Control Protocols



Protocol: XC Protocol, RTSP/RTP, NDI®|HX, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)


Number of Presets



Max. 100 (including home position)



Interface

Communication Control



LAN, Wi-Fi, Serial, IR


Network Terminal



LAN x 1, RJ45, 1000Base-T


3G-SDI OUT Terminal



BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
Embedded audio, Time code (VITC/LTC)



HDMI OUT Terminal



HDMI connector x 1, output only


RS-422 Terminal



RJ45 connector x 1


Mic Terminal



ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or
more/Att.: 20 dB
Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)



USB Terminal



Type-A (USB 2.0) x 1 (future expansion)
Type-C (USB 3.0) x 1



Media Slot



microSD card slot x 1 (future expansion, recording unavailable)



Other

Operating Environment



Temperature: 0°C – +40°C (+32°F – +104°F)
Humidity: 10% – 90% (without condensation)



Storage Environment



Temperature
0°C – +40°C (+32°F – +104°F)
Humidity
10% – 90% (without condensation)



Power Supply



PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used
External power source: 24 V DC (using included AC adaptor)



Power Consumption



PoE+ Input: Approx. 16.2 W* max. (body only)
DC Input: Approx. 15.0 W max. (body only)
*Class 4 (25.5 W required) for power supply devices



Dimensions (W x H x D)



Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)


Weight



Approx. 2.2 kg (4.86 lb.) (body only)


Supported Controllers



Hardware: RC-IP100
Software: Remote Camera Control Application
